CPU temperature
  • Priest of the Order of the Butterfly
    Priest of the Order of the Butterfly
    Jambalah
    Posts: 820 from 2008/3/30
    From: Roma, Italy
    Intuition,
    Quote:

    I just put "Apple Service Diagnostic 2.5.7" into isohunt.com and the full 25GB set of discs and docs is the only result.


    Afaik the full 25 GB set is not necessary since you will going to download disk from early mac to mac pro/macbook pro covering apple machines from 2003 to mid 2010. Of course you can download all of them if you desire.
    For example since I have a Powermac G5 dual 2.7 I only need the disk with that machine diagnostic. The problem is... there are three different disks: 2.5.7, 2.5.8 and 2.6.3 with early 2005 models (like dual 2.7) diagnostic. Reading here and there I found my disk is the first one (2.5.7) but I've decided to download all of them just in case....
    I have downloaded the 2.5.7 and the 2.5.8 yesterday and tomorrow I will try with the third one.
    By the way the full 25 gb set has full documentation inside (from "how to" to "test result guide").
    Pegasos II 1 ghz
    Powermac G4 Quicksilver with Sonnet Encore 1.8 ghz
    Powermac G4 MDD single 1.25 ghz, silenced for ears health...
    Powermac G5 dual 2.7 ghz I'll be back...
    Powermac G5 dual 2.0 ghz
    Powerbook G4 1.67 ghz 17
  • »07.06.13 - 19:20
    Profile
  • Paladin of the Pegasos
    Paladin of the Pegasos
    Intuition
    Posts: 1110 from 2013/5/24
    From: Nederland
    @Mods

    Please delete this post.

    [ Edited by Intuition 09.06.2013 - 20:09 ]
    1.67GHz 15" PowerBook G4, 1GB RAM, 128MB Radeon 9700M Pro, 64GB SSD, MorphOS 3.15

    2.7GHz DP G5, 4GB RAM, 512MB Radeon X1950 Pro, 500GB SSHD, MorphOS 3.9
  • »09.06.13 - 19:59
    Profile
  • Paladin of the Pegasos
    Paladin of the Pegasos
    Yasu
    Posts: 1724 from 2012/3/22
    From: Stockholm, Sweden
    My G5 2.7 GHz runs mostly around 79,5 C. Even when doing very processing intensive work.

    And I will let a professional look at the system and maintain it. Even though it works well right now.
    AMIGA FORUM - Hela Sveriges Amigatidning!
    AMIGA FORUM - Sweden's Amiga Magazine!

    My MorphOS blog
  • »09.06.13 - 20:18
    Profile Visit Website
  • Paladin of the Pegasos
    Paladin of the Pegasos
    Intuition
    Posts: 1110 from 2013/5/24
    From: Nederland
    Intuition,
    Quote:

    ASD 2.5.7
    PowerBook G4 (17-inch 1.5GHz), PowerBook G4 (17-inch 1.67GHz), PowerBook G4 (15-inch 1.5/1.33GHz), PowerBook G4 (15-inch 1.67/1.5GHz), PowerBook G4 (12-inch 1.33GHz), PowerBook G4 (12-inch 1.5GHz), iBook G4 (Early 2004), iBook G4 (14-inch Early 2004), eMac (USB2.0), Power Mac G5, Power Mac G5 (June 2004 Series), Power Mac G5 (Late 2004), Power Mac G5 (Early 2005), iMac G5, iBook G4 (12-inch Late 2004), iBook G4 (14-inch Late 2004), Mac mini, and iMac G5 w/ALS (Ambient Light Sensor)


    I just booted ASD 2.5.7 on my 15" 1.67GHz Powerbook 5,8 and was greeted with a message saying "This machine is not supported". :(

    I'll try 2.6.3 and see if that works.
    1.67GHz 15" PowerBook G4, 1GB RAM, 128MB Radeon 9700M Pro, 64GB SSD, MorphOS 3.15

    2.7GHz DP G5, 4GB RAM, 512MB Radeon X1950 Pro, 500GB SSHD, MorphOS 3.9
  • »09.06.13 - 21:03
    Profile
  • Just looking around
    magud
    Posts: 3 from 2013/7/4
    "-1.0 C" on my PowerMac 3,1 G4@400 MHz.
    PowerMac 3,1@400 MHz (M7641LL/A), 1 GB RAM with ATI Radeon 9000, Soundblaster Live! and Realtek NIC.
  • »04.07.13 - 22:53
    Profile
  • Just looking around
    magud
    Posts: 3 from 2013/7/4
    -0.8 C today. Broken sensor or PowerMac 3,1 not supported?

    Edit: did a SMU (?) reset on the motherboard, made no difference except for reseting time/date. Still -0.8 and still fans on full speed.

    [ Edited by magud 05.07.2013 - 12:41 ]
    PowerMac 3,1@400 MHz (M7641LL/A), 1 GB RAM with ATI Radeon 9000, Soundblaster Live! and Realtek NIC.
  • »05.07.13 - 11:09
    Profile
  • Priest of the Order of the Butterfly
    Priest of the Order of the Butterfly
    bash64
    Posts: 958 from 2010/10/29
    From: USA
    Powermac G5 2.3ghz DP - 72c constant, not much variation.
    Fan design on this model is very well designed, and very quiet.
    Love it.
    Mac G5 ISight 21" 2.5 gb of ram 233gb hd matshita dvd-r uj-846
    Powerbook G4 1.67ghz 2GB, ATI 9700M Pro 128mb
    1TB hd, DL-DVD Burner, Netgear pcmcia wireless card.
    ImageFX 4.5, PageStream 3.3, PhotoGenics 5.0
  • »05.07.13 - 14:44
    Profile Visit Website
  • Moderator
    Kronos
    Posts: 2267 from 2003/2/24
    @magud

    PMac G4 fans are not SW-controllable (atleast not Quicksilver and older, no clue about MDD/FW800), not sure wether there is a way to get CPU-temp on these either.
  • »05.07.13 - 15:23
    Profile
  • Just looking around
    magud
    Posts: 3 from 2013/7/4
    Kronos,
    Quote:

    PMac G4 fans are not SW-controllable (atleast not Quicksilver and older, no clue about MDD/FW800), not sure wether there is a way to get CPU-temp on these either.


    Thank you. I have a Sawtooth M5183.

    Yes, I've have noticed that the chassis fan only has two wires and a sensor directly near the center of the fan.

    The release notes for 3.0 tells you this: "Delivers support for 4 temperature sensors in a PowerBook and 1 in a PowerMac.". But maybe not exactly my PowerMac model.

    I've cleaned some dust and moved the HDD to the left/front instead of sitting directly under the fan/sensor.


    The next step is to replace the chassis fan. Edit: replaced. Slightly better, I think.

    Next step: change the PSU fan.

    [ Edited by magud 05.07.2013 - 21:45 ]
    PowerMac 3,1@400 MHz (M7641LL/A), 1 GB RAM with ATI Radeon 9000, Soundblaster Live! and Realtek NIC.
  • »05.07.13 - 16:31
    Profile
  • Priest of the Order of the Butterfly
    Priest of the Order of the Butterfly
    Jambalah
    Posts: 820 from 2008/3/30
    From: Roma, Italy
    I've found this link
    https://discussions.apple.com/thread/3842869?start=0&tstart=0
    about refurbishing a Powermac G5 LCS. Nice idea! I bought evrything I needed to start and did the work! Here some photos (sorry, I did them with my mobile...).

    Photo 1
    Photo 2
    Photo 3
    Photo 4

    After thermal calibration my G5 double 2.7 run stable at 81.1 C (in this room I have almost 33 C) even playing Quake (HiRes texture) and Duke NUkem (HIRes textures).
    Pegasos II 1 ghz
    Powermac G4 Quicksilver with Sonnet Encore 1.8 ghz
    Powermac G4 MDD single 1.25 ghz, silenced for ears health...
    Powermac G5 dual 2.7 ghz I'll be back...
    Powermac G5 dual 2.0 ghz
    Powerbook G4 1.67 ghz 17
  • »07.08.13 - 21:58
    Profile
  • Priest of the Order of the Butterfly
    Priest of the Order of the Butterfly
    Doffo
    Posts: 507 from 2010/10/14
    From: Nevada
    For the life of me I could not get that LCS to bleed all the air out.. :S Or manager to force any of it inward. How did you go about it?
    -=-=-=-
    YUUUP!
  • »08.08.13 - 01:29
    Profile Visit Website
  • rms
  • Priest of the Order of the Butterfly
    Priest of the Order of the Butterfly
    rms
    Posts: 599 from 2004/11/27
    Quote:

    Jambalah wrote:
    I've found this link
    https://discussions.apple.com/thread/3842869?start=0&tstart=0
    about refurbishing a Powermac G5 LCS. Nice idea! I bought evrything I needed to start and did the work! Here some photos (sorry, I did them with my mobile...).

    Photo 1
    Photo 2
    Photo 3
    Photo 4

    After thermal calibration my G5 double 2.7 run stable at 81.1 C (in this room I have almost 33 C) even playing Quake (HiRes texture) and Duke NUkem (HIRes textures).




    What would be great and help a lot would be the links where to buy all the stuff. Do you think you could post this?

    Regards
    Christoph
  • »08.08.13 - 07:43
    Profile Visit Website
  • Priest of the Order of the Butterfly
    Priest of the Order of the Butterfly
    Jambalah
    Posts: 820 from 2008/3/30
    From: Roma, Italy
    rms,
    Quote:

    What would be great and help a lot would be the links where to buy all the stuff. Do you think you could post this?

    Regards
    Christoph


    Hello Christoph!
    I started from those links:

    http://www.xlr8yourmac.com/systems/G5_CoolantLeak_Repair/G5_CoolantLeak_Repair_p1.html
    https://discussions.apple.com/thread/3842869?start=0&tstart=0
    http://forums.macrumors.com/showthread.php?t=1109014
    http://www.saunalahti.fi/~holindho/g5-quad-v1-lcs-repair.html

    Though the last link is G5 quad specific, it has interesting tips for refilling and testing the pump.
    Let's speak about o-rings, the most important part: the first link report those dimensions:
    - internal diameter: 1.313" --> 3,33502 cm
    - outside diameter: 1.438" --> 3,65252 cm
    - thickness: 1/16" --> 1,5875 mm
    The second link specifies different dimension:
    - internal diameter: 3,16 cm
    - thickness: 2,4 mm
    I ordered the second one since the fellow wich performed the refurbish on his G5 dual 2.7 wrote those o-rings are a little thicker but are ok. Ordered here:
    http://simplybearings.co.uk/shop/
    Obviously, those were wrong sizes.... and so I used my dremel gently and with great caution to work the hose part where o-ring would have placed.
    So don't make my error: order rhe right one!
    Here:
    http://simplybearings.co.uk/shop/p513146/1.5mm+Section+33.5mm+Bore+VITON+Rubber+O-Rings+Allow+2-3+Days/product_info.html
    or here:
    http://www.ebay.it/itm/221133721374?var=520114057577&ssPageName=STRK:MEWAX:IT&_trksid=p3984.m1423.l2649
    IMPORTANT: use the Viton because they have great resistance and durability.
    I replaced only the black hose connections and left the metallic tubes since I guess you have a better heat loss with them. But if you want to follow the original project, here you are tube and anti kink coil:
    http://www.ebay.it/itm/321054365551?ssPageName=STRK:MEWAX:IT&_trksid=p3984.m1423.l2649
    http://www.ebay.it/itm/271240499066?ssPageName=STRK:MEWAX:IT&_trksid=p3984.m1423.l2649
    Tygon is one of the best cristal clear tube and have a great resistance but you can use a normal tube too.
    I ordere the knurled barb to create a filler plug for coolant liquid here:
    http://www.watercoolinguk.co.uk/p/Enzotech-NPH-ID38-G14-38Inch-10mm-Knurled-Barb--Inc-Blank_4324.html
    I used ARCTIC COOLING MX-4 thermal paste wich I bought on ebay and Cooler Master Aquagate NC-1 (described in the first link). This coolant liquid is out of stock but I found here:
    http://www.ebay.it/itm/330529814722?ssPageName=STRK:MEWAX:IT&_trksid=p3984.m1423.l2649
    Obviously, thermal paste and coolant liquid could be different according to your choice and knowledge.
    T-bar for connecting tubes (I used a Y bar) is easy to find and so are the clamps and gasket sealant
    Some tips:
    Take care of radiator because the old coolant used by delphi leves sediments. I washed (litterally!) the radiator using white winegar and bicarbonate. I left it immerged in winegar for half an hour and then added a spoon of bicarbonate and after the reaction I left there for other ten minutes. Then I repeated process using a tube and funnel to insert bicarbonate and winegar again, just to be sure.

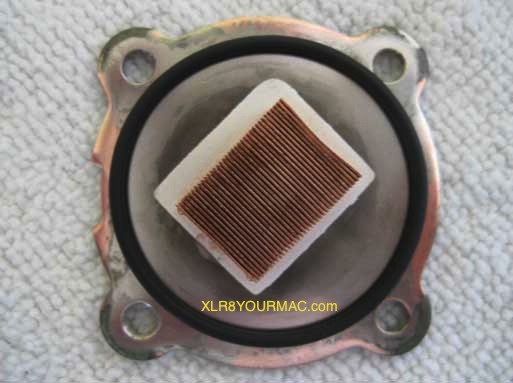

    Pay attention to heat transfer modules http://www.xlr8yourmac.com/systems/G5_CoolantLeak_Repair/figure2.jpg
    because copper heatsink is really fragile and can easily bend. Handle with care if you have to remove traces and or deposits left by leakage. Use a toothbrush after a winegar/bicarbonate treatment.
    I used the gasket sealant even on pump o-ring, just to be sure. A little quantity is enough.
    Once created the filler with knurled barb I started to pour the coolant liquid. Here one needs patience: pour a little quantity of coolant, move/rotate all the lcs block so that liiquid reaches all parts of it and repeat until it seems full. Close the filler and go on moving and rotating the block. Sure you will find some parts not filled (transparent tubes help so much here!). Try to move those air bubbles towards the filler and when it's done open and add coolant, close and repeat. Go on til air is gone. Place termal paste on cpu modules and mount them. Take care to mark the processor modules and place them in the original position they were before or calibration will fail!
    Don't forget to calibrate the G5 once everything is mounted (I used 2.5.8 ASD dual boot disc) and place the Powermac in a not too hot place or you can occour in an error like this "Move unit to a cooler environment and retest".
    I guess it's all!
    Any question, I'm here.
    Regards!!!

    [ Edited by Jambalah 08.08.2013 - 20:19 ]
    Pegasos II 1 ghz
    Powermac G4 Quicksilver with Sonnet Encore 1.8 ghz
    Powermac G4 MDD single 1.25 ghz, silenced for ears health...
    Powermac G5 dual 2.7 ghz I'll be back...
    Powermac G5 dual 2.0 ghz
    Powerbook G4 1.67 ghz 17
  • »08.08.13 - 19:01
    Profile
  • rms
  • Priest of the Order of the Butterfly
    Priest of the Order of the Butterfly
    rms
    Posts: 599 from 2004/11/27
    Quote:

    Jambalah wrote:
    rms,
    Quote:

    What would be great and help a lot would be the links where to buy all the stuff. Do you think you could post this?

    Regards
    Christoph


    Hello Christoph!
    I started from those links:




    Hi Jambalah,

    buhhh that was already a lot of work to write all this, thanks very much!

    As I do have 2 of these 2.7 GHz PM's but do not use them, because to risky that they leak,
    I will have a look at all this and buy the stuff in order to service them. Let's see...

    Thanks again for your help.

    With best regards
    Christoph
  • »10.08.13 - 07:12
    Profile Visit Website
  • Acolyte of the Butterfly
    Acolyte of the Butterfly
    Derringer
    Posts: 103 from 2008/8/4
    From: Budapest, Hung...
    I replaced my LCS cooling on my 2,7GHz Morphos Machine temporarly to non liquid. Now when about 26-27C on my room the cpu temperature is constantly 84C fans quiet. Even under Blender rendering.

    Now the question is, if i recalibrate the temperature with apple service cd this can be better, or calibration has only sense for only OSX?

    [ Edited by Derringer 10.08.2013 - 09:40 ]
    MorphOS PowerBook G4 1,67GHz, 2GB Ram, 250GBHdd, ATI 9700/128MB
    Morphos G5 2,7GHz, 8GB Ram, 500GB Hdd, ATi Passive cooled 9800 PRO/128MB
  • »10.08.13 - 08:39
    Profile
  • Priest of the Order of the Butterfly
    Priest of the Order of the Butterfly
    stephen_robinson
    Posts: 746 from 2007/4/22
    rms,
    Quote:


    As I do have 2 of these 2.7 GHz PM's but do not use them, because to risky that they leak,
    I will have a look at all this and buy the stuff in order to service them. Let's see...


    Don't they still leak even in storage?
  • »11.08.13 - 21:18
    Profile
  • Priest of the Order of the Butterfly
    Priest of the Order of the Butterfly
    analogkid
    Posts: 664 from 2004/11/3
    From: near myself
    On my Powermac 3,3 with Newertech CPU module (1,6Ghz) a CPU temperature of 37,5 °C is reported, which seems to be a valid value.
  • »11.08.13 - 21:35
    Profile
  • Moderator
    Kronos
    Posts: 2267 from 2003/2/24
    Well my 1.8GHz Sonnet is freezing at -0.8°C !!

    The Display on my 3.5" fan-controller says 42°C.


    Mmmmm, which one to trust ;)

    [ Edited by Kronos 12.08.2013 - 12:07 ]
  • »12.08.13 - 11:03
    Profile
  • Priest of the Order of the Butterfly
    Priest of the Order of the Butterfly
    Jambalah
    Posts: 820 from 2008/3/30
    From: Roma, Italy
    My dual 2.7 PowerMAc G5 seems to have some problems.
    Temperature is now increased til 85.5 C degrees (fluctuating between + 0.2 / 0.4) and doing an examination with 2.5.8 ASD revealed problem on temperature sensor CPUB AD 7417 AD1 with an error message:: "Error thermal reads above alarm settings 2".
    I did a thermal calibration and CPU 1 error appeared, checked sensor again and no errors but still 86.5 C degrees and still CPU 1 error on thermal calibration.
    I'm going to investigate and maybe trying to disable the CPU 1.
    Let's see...
    Pegasos II 1 ghz
    Powermac G4 Quicksilver with Sonnet Encore 1.8 ghz
    Powermac G4 MDD single 1.25 ghz, silenced for ears health...
    Powermac G5 dual 2.7 ghz I'll be back...
    Powermac G5 dual 2.0 ghz
    Powerbook G4 1.67 ghz 17
  • »24.08.13 - 17:25
    Profile
  • Paladin of the Pegasos
    Paladin of the Pegasos
    Intuition
    Posts: 1110 from 2013/5/24
    From: Nederland
    My fan cooled DP 2.7 GHz G5 idles around 80-82 degrees under MorphOS and the fans seem to run more often than under OSX.

    They don't run at all for several minutes and then they kick in at full speed like a jet engine for a minute or two then wind down again.

    I've not had the time to test it under any kind of heavy load really but I imagine the fans will run at full pelt given enough work to do as just compiling short C programs kicks in the fans immediately. Interestingly, GCC seems to cause the fans to work harder than VBCC does when compiling the same code.

    When the kids are back at school after the summer holiday I will try to find time to do some better testing and see what happens.
    1.67GHz 15" PowerBook G4, 1GB RAM, 128MB Radeon 9700M Pro, 64GB SSD, MorphOS 3.15

    2.7GHz DP G5, 4GB RAM, 512MB Radeon X1950 Pro, 500GB SSHD, MorphOS 3.9
  • »25.08.13 - 01:17
    Profile
  • Priest of the Order of the Butterfly
    Priest of the Order of the Butterfly
    Doffo
    Posts: 507 from 2010/10/14
    From: Nevada
    @intuition

    Can you get a copy of the ASD cd so you can try to run a calibration to see if it successfully calibrates? I only tried one set of 2.7s and it wont calibrate right, but my 2.5ghz air cooled setup passed.
    -=-=-=-
    YUUUP!
  • »25.08.13 - 03:49
    Profile Visit Website
  • Paladin of the Pegasos
    Paladin of the Pegasos
    Intuition
    Posts: 1110 from 2013/5/24
    From: Nederland
    Quote:

    Doffo wrote:
    @intuition

    Can you get a copy of the ASD cd so you can try to run a calibration to see if it successfully calibrates? I only tried one set of 2.7s and it wont calibrate right, but my 2.5ghz air cooled setup passed.


    Yeah sure, which version number of ASD is the most recent that supports the 2.7 DP? 2.5.8?
    1.67GHz 15" PowerBook G4, 1GB RAM, 128MB Radeon 9700M Pro, 64GB SSD, MorphOS 3.15

    2.7GHz DP G5, 4GB RAM, 512MB Radeon X1950 Pro, 500GB SSHD, MorphOS 3.9
  • »25.08.13 - 05:45
    Profile
  • Priest of the Order of the Butterfly
    Priest of the Order of the Butterfly
    Doffo
    Posts: 507 from 2010/10/14
    From: Nevada
    I believe that was the correct version for the G5.
    -=-=-=-
    YUUUP!
  • »25.08.13 - 07:27
    Profile Visit Website
  • Paladin of the Pegasos
    Paladin of the Pegasos
    Intuition
    Posts: 1110 from 2013/5/24
    From: Nederland
    Quote:

    Doffo wrote:
    I believe that was the correct version for the G5.


    Downloaderising as we speak, but the torrent speed is terrible so it'll probably take a few days to complete at this rate.

    Will let you know what happens once I've run the tests on the G5.
    1.67GHz 15" PowerBook G4, 1GB RAM, 128MB Radeon 9700M Pro, 64GB SSD, MorphOS 3.15

    2.7GHz DP G5, 4GB RAM, 512MB Radeon X1950 Pro, 500GB SSHD, MorphOS 3.9
  • »25.08.13 - 08:26
    Profile
  • Priest of the Order of the Butterfly
    Priest of the Order of the Butterfly
    Doffo
    Posts: 507 from 2010/10/14
    From: Nevada
    @Intuition

    Sounds good. Thanks! :)
    -=-=-=-
    YUUUP!
  • »26.08.13 - 00:22
    Profile Visit Website
